Inside Hot Tub Production: Equipment Layout and Service Access Questions for Dealers

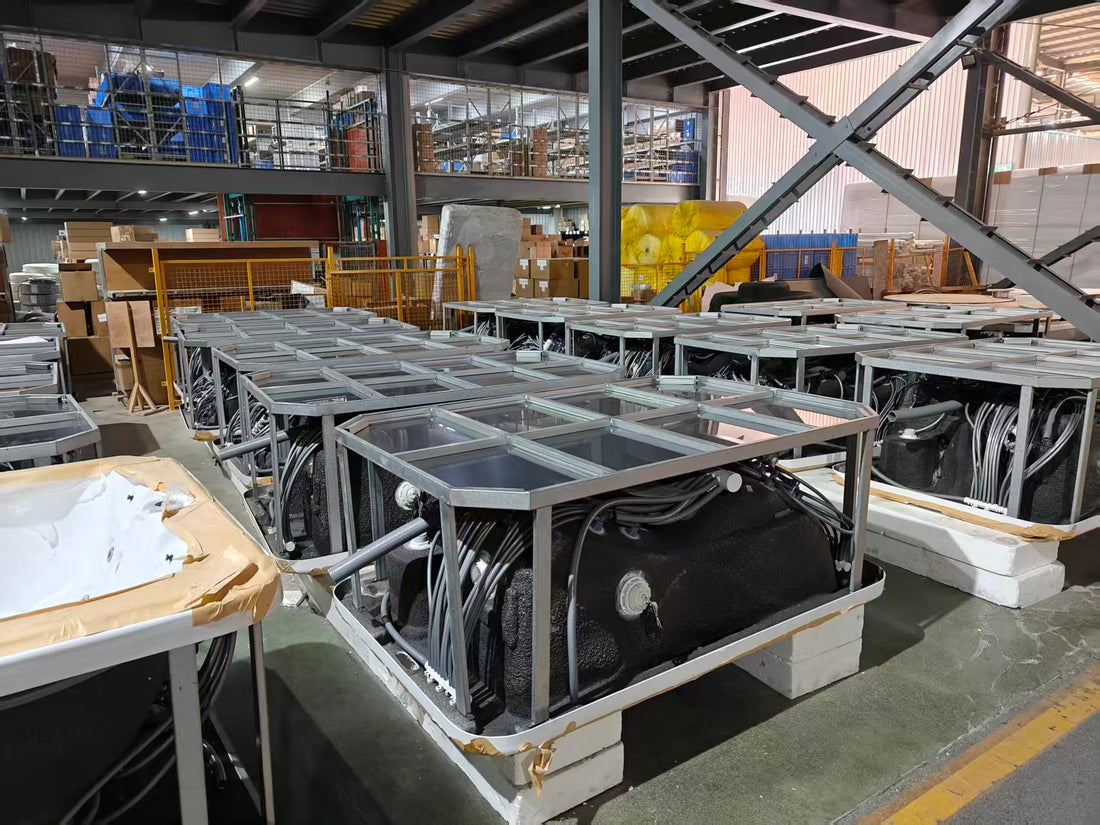

A finished hot tub is normally judged from the shell, seats, jets, controls, and cabinet. During production, the underside and internal routing are more visible, making it easier to ask how the product will be inspected, installed, documented, and serviced later. The photograph in this guide shows unfinished hot tubs positioned in the Valora factory for manufacturing access. It does not show a customer installation, a safe owner-service position, or one universal equipment specification.

Quick answer

Before ordering, dealers should confirm the exact model drawing, equipment list, plumbing and electrical documentation, intended service side, removable access areas, required site clearance, foundation interface, drain and filtration locations, lifting restrictions, spare-parts identification, test records, and after-sales escalation path. Use labeled records for the ordered configuration rather than inferring pump quantity, pipe size, frame material, insulation, power, component brand, or performance from a factory photograph. Owners should not overturn a spa, remove panels, open electrical enclosures, or reach into equipment areas unless the exact instructions and qualified support permit it.

Dealer equipment-access review

Read the factory photograph in the correct context

The products shown are unfinished and positioned upside down so trained factory personnel can work around the shell, frame, plumbing, and equipment area. Protective materials and incomplete exterior panels may also be present. This position is part of controlled production context, not an instruction for transport, installation, inspection, or repair at a dealer or customer site.

A photograph can demonstrate visibility and production access, but it cannot prove hidden materials, component ratings, structural capacity, insulation performance, hydraulic performance, electrical compliance, certification, or the final ordered configuration. Those facts must come from current model and order documents.

Request an order-specific equipment map

Ask for a labeled record that connects the finished cabinet sides to major service areas, filtration, drain location, control system, pumps, heater where applicable, sensors, and other ordered components. The goal is not to teach owners to repair equipment. It is to help the dealer prepare the site, identify the correct model information, and route future support questions efficiently.

Keep the quotation, final configuration, drawing, manual, electrical data, packing list, serial information, and relevant production photographs under one order reference. If a component or layout changes before production, update the written record instead of relying on an earlier generic image.

• Label orientation consistently: control side, entry side, and intended service side.
• Record the exact model and destination-market configuration.
• Separate standard equipment from optional accessories.
• Confirm which documents are supplied before shipment and with the product.

Review plumbing routes without judging by appearance alone

Production visibility allows a dealer to ask whether hoses and pipes are routed with suitable support, whether connections can be identified, and whether future diagnosis has clear reference points. Compare the actual unit with its ordered plumbing and jet configuration rather than counting visible lines in one photograph.

Do not infer pipe diameter, material grade, flow rate, pressure, glue system, test duration, freeze protection, or expected service life from appearance. Ask how the exact model is documented, tested, drained, winterized where relevant, and supported after sale.

Connect frame and base observations to the site plan

The visible frame and base relationship can prompt useful questions about continuous support, level placement, drainage around the installation, equipment ventilation, anchoring where applicable, and keeping access areas clear. It does not replace structural documentation or a site-specific foundation review.

Use the current filled operating data and installation requirements with qualified local professionals. Never estimate allowable loads, lifting points, forklift positions, crane slings, or foundation details from a factory image. Handling instructions must match the exact model, packaging, route, and equipment.

Preserve the intended service side after installation

A technically suitable equipment arrangement can still become difficult to service if a wall, deck, planter, step, cover mechanism, or landscaping blocks the intended access side. Mark service zones on the placement drawing before foundations, surrounds, or permanent finishes are completed.

Confirm how finished cabinet panels are accessed, what clearance is required, and which routine tasks are owner-accessible. Leave electrical, pump, heater, control, and plumbing work to qualified personnel using the exact instructions and local requirements.

• Show walls, deck edges, steps, handrails, and cover travel on the site plan.
• Keep drainage and standing water away from electrical and service areas.
• Plan safe technician approach and working space.
• Do not permanently enclose removable panels without an approved access solution.

Make component identification useful for after-sales support

Dealers need a reliable way to connect a support case to the supplied configuration. Record the order reference, model, serial information, destination market, installation date, and labeled component information that is safe and normally available. When support is needed, send wide, medium, and close photographs in sequence rather than an isolated unidentified part.

Do not ask an owner to turn over the spa, enter the underside, remove guards, open electrical boxes, or disconnect plumbing for identification. If smoke, burning odor, exposed wiring, water in an electrical area, severe leaking, abnormal heat, or repeated protective-device trips occur, stop use and involve qualified support.

Define factory inspection evidence before shipment

A useful production record links the physical unit to the written order. Agree which checkpoints should be documented for model identity, visible routing and workmanship, component labels, controls, water operation where applicable, drainage, final condition, accessories, packing, and shipment handoff.

Avoid converting a few photographs into broad claims about every unit or every market. Confirm the actual inspection scope, acceptance criteria, test record, deviations, corrective actions, and final approval for the order. Keep any customer-specific or commercially sensitive information out of public images.

Turn the review into quotation and support questions

Before approving a quotation, list the exact equipment configuration, compatible options, voltage and frequency for the destination, required local electrical work, filtration and drain information, intended service access, spare-parts plan, documents, warranty, and support contacts. Confirm inclusions and exclusions in writing.

Ask how replacement parts will be identified, what evidence support needs, who may perform regulated work, and how dealers escalate a case. A clear record is more valuable than an unlabeled equipment photograph because it remains usable after the product is installed and the internal layout is no longer visible.

Helpful links from Valora Spas

• Browse Valora hot tubs
• Review hot tub factory quality checks
• Use the dealer factory visit checklist
• Prepare the hot tub site before delivery
• Inspect delivery condition before filling
• Prepare useful support photos and videos
• Review Valora dealer support
• Request model-specific equipment documents

FAQ

Can I determine hot tub pump quantity from a factory photo?

No. Visible equipment varies by model, option, market, and production stage. Confirm the exact ordered equipment list, drawing, labels, and quotation.

Which side of a hot tub needs service access?

The required side and clearance depend on the exact model and equipment layout. Request a labeled model drawing and include nearby walls, decks, steps, and cover equipment in the site plan.

Should a dealer ask for production photos before shipment?

They can be useful when tied to the order reference and agreed checkpoints. Photos should supplement, not replace, the configuration, inspection record, test documents, packing list, and final approval.

Can an owner turn a hot tub over to inspect the underside?

No. The factory image shows controlled production access, not an owner procedure. Follow the exact handling and service instructions and use qualified personnel.

What equipment information should be included in a hot tub quotation?

Confirm the exact model and configuration, major ordered components, destination electrical data, filtration and drain information, access requirements, options, documents, spare-parts support, warranty, and exclusions.

Request the equipment record before approving the site

Send Valora the intended model, destination market, site drawing, access constraints, cover and step plan, electrical planning status, documentation needs, and after-sales expectations through the Valora Spas contact page. Dealers can use the dealer support page to request current configuration, service-access, packing, spare-parts, and quotation information.
